4-1 Solar Panel Combiner Box – 4 circuits to 1 (1 x 63A max output) Version 3 Improved, ltd stock.
$ 95.74

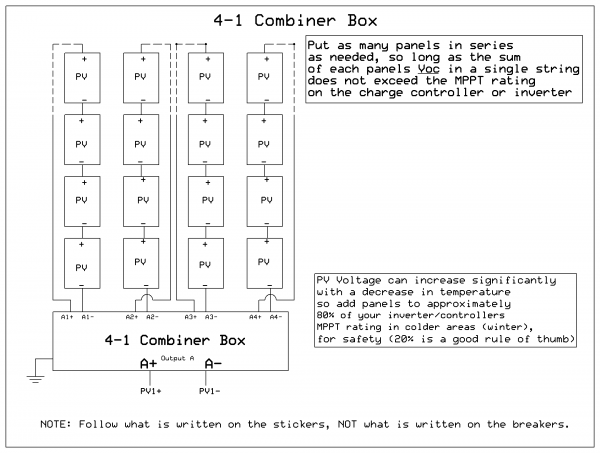

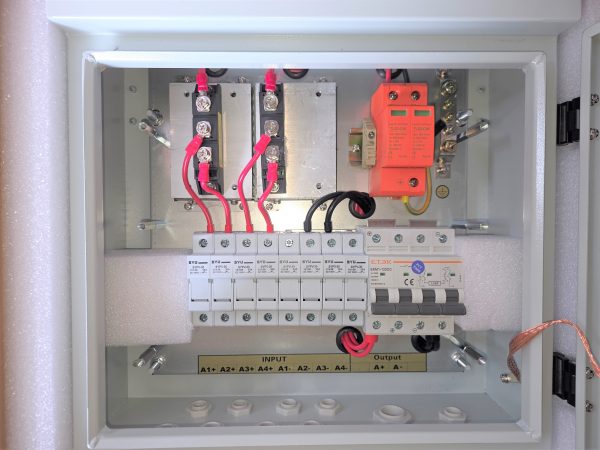

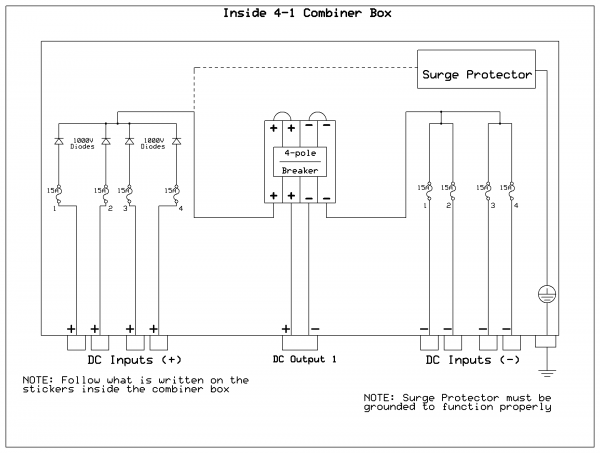

Description Solar Combiner boxes make connecting multiple solar panels in series and parallel a breeze. All your panel wiring troubles made really simple Version 3 include heavy duty diodes, no solder. Specifications: 63A DC Disconnect rated at 4kV DC (4 pole x 1000VDC in series ) Double fuse protection – Each Solar Panel input is protected by a 15A Silica Fast Blow Fuse (On both Positive and Negative Legs) DC Overcurrent protection rated at 63A at 4kV DC Surge Protection 1000V DC, Imax 40kA, In 20kA Up >= 2.5kV Diode Protection 25A, 1000V, per input string 4 PV Positive Fused Inputs and 4 PV Negative Fused Inputs Features: Metal Box (no melting or fire hazard) IP65 Outdoor Weatherproof Key Lockable Each Circuit is fused 15A (on both Positive and Negative terminals ) Reverse Polarity Diode Protection Available in a variety of configurations (4 to 1 , 4 to 2, 6 to 1 , 8 to 2, 8 to 1) Acrylic face plate cover for full protection (most other suppliers simply ignore this feature) – often hundreds of volts Surge Protection – 1000V Specs, 15A per PV Input string Max 63 A DC Output.
